Dual Monitor Arm Installation Guide: Step-by-Step (Viva Elite 2026)

Dual Monitor Arm Installation Guide: Step-by-Step (Viva Elite 2026)

Installing the Viva Elite Dual Monitor Stand Arm takes approximately 20–30 minutes for most setups. All required hardware and tools are included in the box — no additional tools required for most installations. This guide covers every step: choosing your mounting method, attaching the base, removing factory stands, mounting monitors to the arm, routing cables, and setting ergonomic positions.

A monitor arm installation that takes 20 minutes and is done correctly will serve you for years. An installation done incorrectly — wrong mounting method, loose connections, cables not routed — creates daily frustration. This guide covers every step of the Viva Elite installation in detail, including the decisions you need to make before you start and the common mistakes to avoid.

Best for: Anyone installing the Viva Elite Dual Monitor Stand Arm for the first time · Anyone who wants to understand the installation process before purchasing · Anyone troubleshooting an installation issue

Shop the Viva Elite Dual Monitor Stand Arm →

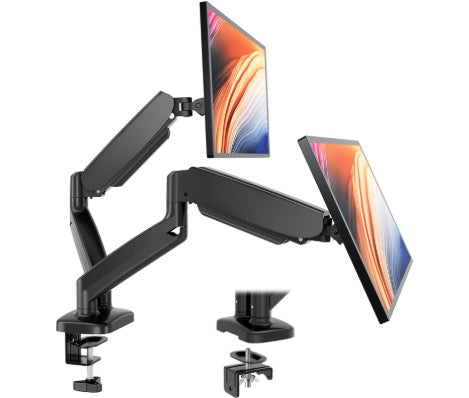

Viva Elite Dual Monitor Arm Installation Overview

✔ Before You Start: What You Need to Know

  • ✔ Check your monitors’ VESA pattern: Look at the back of each monitor for four threaded holes in a square arrangement. Measure the distance between them (center to center) — 75mm or 100mm. This is your VESA pattern. The Viva Elite supports both 75x75mm and 100x100mm. If your monitors have no VESA holes, they cannot be mounted on this arm without an adapter.
  • ✔ Check your monitors’ weight: Find the weight of each monitor without its stand (check the manufacturer’s spec sheet or website). Each monitor must weigh under approximately 17.6 lbs. Most 24–27" monitors weigh 8–15 lbs without stand — well within range.
  • ✔ Choose your mounting method: C-clamp (most common) for desk edges up to 3.5" thick. Grommet base for desks with a pre-drilled hole. Both are included in the box. Decide before you start — the base attachment is the first step.
  • ✔ What’s in the box: Dual monitor gas spring arm (main unit), C-clamp base, grommet base, VESA mounting hardware (bolts for 75x75mm and 100x100mm), Allen key / hex wrench, installation guide.
  • ✔ What you may need additionally: A soft surface (blanket or towel) to lay monitors face-down during stand removal. A Phillips screwdriver for removing factory monitor stands (most use Phillips screws). That’s it — no other tools required for most installations.
Viva Elite Dual Monitor Arm What's in the Box

✔ Step 1: Attach the Base to Your Desk

🔧 C-Clamp Installation (Most Common)
  • ✔ Position the clamp: Place the C-clamp base on your desk edge at the position where you want the arm centered. For a symmetrical dual monitor layout, center the arm on the desk. For an asymmetric layout (primary monitor centered on your body), offset the arm slightly toward the side of your secondary monitor.
  • ✔ Check desk thickness: The C-clamp fits desk edges up to 3.5" thick. If your desk edge is thicker than 3.5", use the grommet base instead (or contact us before purchasing).
  • ✔ Protect the desk surface: Place the included rubber pad between the clamp and the desk surface to prevent scratching. Most C-clamp bases include a rubber pad — check the box contents.
  • ✔ Tighten the clamp bolt: Thread the clamp bolt through the clamp body and tighten against the underside of the desk. Tighten firmly — the clamp should not move when you push on it. Do not overtighten to the point of damaging the desk surface. A firm, stable clamp is the goal.
  • ✔ Test stability: Push and pull on the mounted base in all directions. It should not move. If it moves, tighten the clamp bolt further. A loose base will cause the entire arm to wobble when monitors are mounted.
🔧 Grommet Base Installation
  • ✔ Locate the grommet hole: Most office desks have a pre-drilled grommet hole (typically 1–32mm diameter) near the back edge. If your desk has a grommet cover (a plastic cap), remove it before installation.
  • ✔ Insert the grommet base: Insert the grommet base post through the hole from above. The base plate sits on top of the desk surface.
  • ✔ Secure from below: Thread the included nut onto the post from below the desk and tighten with the included Allen key. Tighten until the base plate is firmly seated against the desk surface and does not rotate.
  • ✔ Test stability: Push and pull on the mounted base in all directions. The grommet base provides a more stable foundation than the C-clamp for heavy monitors — it should be completely rigid when properly tightened.

✔ Step 2: Attach the Arm to the Base

  • ✔ Slide the arm onto the base post: The arm’s central column slides onto the base post. Align the arm with the base and slide down until seated.
  • ✔ Secure the arm to the base: Tighten the securing bolt or set screw that locks the arm to the base post. Use the included Allen key. Tighten firmly — the arm should not rotate on the base when you push on it.
  • ✔ Check rotation: The arm should rotate smoothly on the base when you intentionally rotate it, but should not rotate on its own from the weight of the monitors. If it rotates too freely, tighten the base connection further.
Dual Monitor Arm Base Installation C-Clamp Grommet

✔ Step 3: Remove Factory Stands from Monitors

  • ✔ Prepare a soft surface: Lay a blanket, towel, or foam pad on your desk or floor. You will lay each monitor face-down on this surface to access the stand mounting screws on the back. The soft surface protects the screen from scratches.
  • ✔ Lay the monitor face-down: Carefully lay the monitor face-down on the soft surface. Support the monitor with one hand while lowering it to prevent it from falling.
  • ✔ Remove the stand screws: Most factory stands are secured with 4 Phillips screws on the back of the monitor. Remove all screws and set aside. Some stands have a release button rather than screws — press the button while pulling the stand away from the monitor.
  • ✔ Remove the stand: With the screws removed, lift the stand away from the monitor. The VESA mounting holes are now exposed — four threaded holes in a square arrangement on the back of the monitor.
  • ✔ Repeat for the second monitor.

✔ Step 4: Attach VESA Plates to Monitors

  • ✔ Select the correct VESA bolts: The Viva Elite includes bolts for both 75x75mm and 100x100mm VESA patterns. Select the bolts that match your monitor’s VESA pattern (measured in Step 0). The bolt size is typically M4 for 75x75mm and M4 or M6 for 100x100mm — check the included hardware guide.
  • ✔ Attach the VESA mounting plate: Place the VESA mounting plate (included with the arm) against the back of the monitor, aligning the plate’s holes with the monitor’s VESA holes. Thread the bolts through the plate and into the monitor’s threaded holes.
  • ✔ Tighten the bolts: Tighten all four bolts with the included Allen key. Tighten in a cross pattern (top-left, bottom-right, top-right, bottom-left) to ensure even seating. Tighten firmly but do not overtighten — the threads in the monitor’s VESA holes can be stripped if overtightened.
  • ✔ Repeat for the second monitor.
VESA Plate Attachment Dual Monitor Arm Installation

✔ Step 5: Mount Monitors to the Arm

  • ✔ Lift the monitor to the arm head: With the VESA plate attached, lift the monitor and align the VESA plate with the arm’s monitor head. The plate typically clicks or slides into the head’s receiver.
  • ✔ Secure the monitor to the arm head: Tighten the securing bolt or locking mechanism on the arm head that holds the VESA plate in place. Use the included Allen key. The monitor should be firmly attached — it should not pull away from the arm head when you tug on it.
  • ✔ Check the gas spring response: With the monitor mounted, gently push it down and release. The gas spring should hold the monitor at the new position. If the monitor drifts up or down after release, the gas spring tension may need adjustment (see the tension adjustment section below).
  • ✔ Repeat for the second monitor.
  • ✔ Gas spring tension adjustment (if needed): If a monitor drifts up (spring too strong for the monitor’s weight) or down (spring too weak), locate the tension adjustment screw on the arm’s pivot point. Turn clockwise to increase tension (for heavier monitors or upward drift), counterclockwise to decrease tension (for lighter monitors or downward drift). Adjust in small increments and test after each adjustment.

✔ Step 6: Route Cables

  • ✔ Route cables through the arm channels: The Viva Elite has integrated cable management channels along the arm structure. Route each monitor’s cables (power and video) through these channels from the monitor head down to the arm base. This step is easiest to do before fully tightening the monitor positions — route cables while the arm is in a convenient position, then position the monitors.
  • ✔ Cable types to route: Power cable (from monitor to power strip), video cable (DisplayPort or HDMI from monitor to computer). Route both cables for each monitor through the arm channels.
  • ✔ Leave slack at the monitor head: Leave 6–8 inches of cable slack at the monitor head to allow for tilt and swivel movement without pulling the cable taut. Cables that are too tight will restrict monitor movement and may disconnect when the monitor is repositioned.
  • ✔ Route from arm base to computer: From the arm base, route cables under the desk to the computer using cable clips or a cable tray. This keeps the desk surface completely clear of cables.
Cable Routing Dual Monitor Arm Installation

✔ Step 7: Position Monitors Ergonomically

  • ✔ Height: Sit in your normal working position. Adjust both monitors so the top of each screen is at or slightly below eye level. This is the ergonomic standard — it keeps the neck in a neutral position during long sessions.
  • ✔ Distance: Position monitors approximately arm’s length away (20–28" from your eyes). Extend your arm — your fingertips should nearly touch the screen.
  • ✔ Primary monitor: Center the primary monitor directly in front of your body. This is the screen you look at most — it should be directly in your line of sight without head rotation.
  • ✔ Secondary monitor: Position the secondary monitor to the left or right at 15–30 degrees from the primary. This allows a natural head turn to view the secondary screen without full body rotation.
  • ✔ Tilt: Tilt both monitors slightly backward (3–5 degrees) to reduce glare from overhead lighting.
  • ✔ The gas spring holds all positions: Once positioned, the gas spring holds each monitor exactly where you placed it. No bolt-tightening required. If you want to reposition later, simply move the monitor with one hand — the spring holds the new position.

✔ Common Installation Mistakes to Avoid

  • ✔ Loose base: The most common installation mistake. A loose C-clamp or grommet base causes the entire arm to wobble when monitors are mounted. Always test base stability before mounting monitors — push and pull in all directions. If it moves, tighten further.
  • ✔ Cables too tight at monitor head: Cables routed without slack at the monitor head will restrict movement and may disconnect when the monitor is repositioned. Always leave 6–8 inches of slack at each monitor head.
  • ✔ Overtightening VESA bolts: The threaded holes in monitor VESA mounts can be stripped if bolts are overtightened. Tighten firmly but stop when resistance is felt — do not force.
  • ✔ Not checking VESA pattern before installation: Attempting to mount a monitor with the wrong VESA bolt size will result in bolts that don’t thread correctly. Always verify your monitor’s VESA pattern (75x75mm or 100x100mm) before selecting bolts.
  • ✔ Skipping cable routing: Routing cables after the monitors are fully positioned is significantly harder than routing during installation. Route cables through the arm channels before finalizing monitor positions.

Shop the Viva Elite Dual Monitor Stand Arm →

❓ Frequently Asked Questions

Q: How long does it take to install the Viva Elite Dual Monitor Arm?
Approximately 20–30 minutes for most setups. The process: choose mounting method (5 min), attach base to desk (5 min), remove factory stands from monitors (5 min), attach VESA plates (5 min), mount monitors to arm (5 min), route cables (5 min), position ergonomically (5 min). All hardware and tools included in the box.

Q: Do I need any tools beyond what’s included in the box?
For most installations: no. The Viva Elite includes an Allen key for all arm hardware. You may need a Phillips screwdriver to remove factory monitor stands (most use Phillips screws). A soft surface (blanket or towel) to lay monitors face-down is helpful but not a tool. No drill, no power tools, no additional hardware required for most setups.

Q: My monitor is drifting after installation — what do I do?
Adjust the gas spring tension. Locate the tension adjustment screw on the arm’s pivot point (typically a hex screw accessible with the included Allen key). Turn clockwise to increase tension (if monitor drifts down), counterclockwise to decrease tension (if monitor drifts up). Adjust in small increments and test after each adjustment.

Q: Can I install the Viva Elite on a standing desk?
Yes. The C-clamp fits desk edges up to 3.5" thick, which covers most standing desk tops including thick solid wood tops. The grommet base works with any desk that has a pre-drilled hole. Both mounting options are included. The gas spring arm adjusts instantly when the desk height changes between sitting and standing positions.

Q: What if my desk edge is thicker than 3.5"?
Use the grommet base if your desk has a pre-drilled hole. If your desk has neither a grommet hole nor an edge within the C-clamp’s range, contact us before purchasing to discuss options. Do not attempt to force the C-clamp onto a desk edge that exceeds its range.
