How to Install Solar Motion Sensor Lights: Step-by-Step Guide

Installing a solar motion sensor light takes about 15 minutes and requires no electrical knowledge, no wiring, and no permits. This guide walks you through every step — from choosing the right location to setting the correct mode for your application.

🛠️ What You'll Need

• Solar motion sensor light (with included mounting hardware)
• Power drill + drill bits (for masonry or wood)
• Screwdriver (Phillips head)
• Pencil or marker
• Measuring tape
• Level (optional but recommended)
• Ladder (for heights above 6 ft)

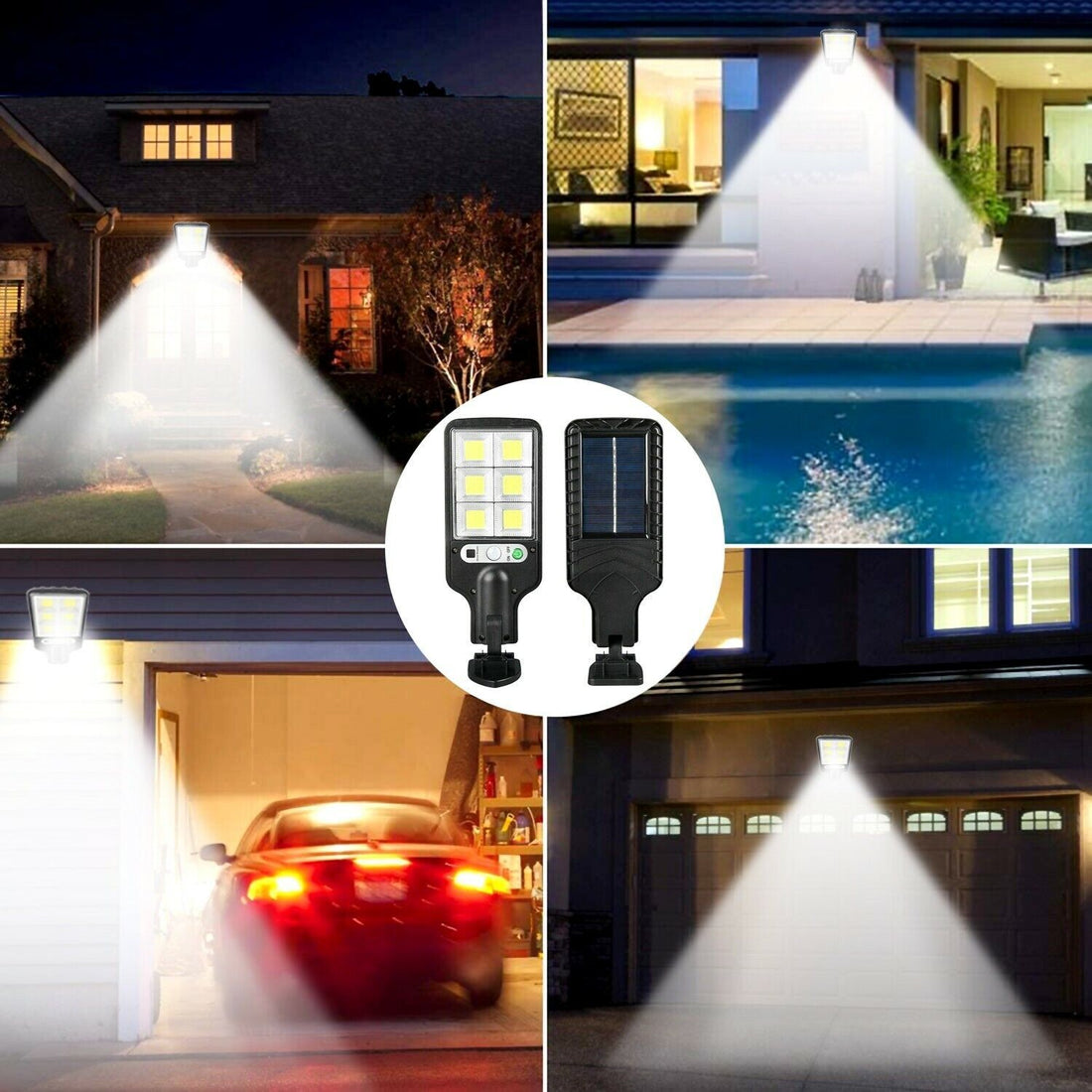

The Viva Elite Solar Motion Sensor Security Light includes all mounting hardware — screws, wall anchors, and a mounting bracket. No additional hardware needed for most installations.

📍 Step 1: Choose Your Location

Before drilling anything, confirm your location meets these requirements:

• Sunlight: The solar panel needs 4+ hours of direct sunlight daily. Check for shade from trees, overhangs, or neighboring buildings at different times of day.
• Coverage zone: Stand at the mounting location and visualize the detection zone. A 120° light covers roughly 26 ft in front and 13 ft to each side at the widest point.
• Height: 8–10 ft is optimal for most applications. Too low = narrow detection zone. Too high = reduced PIR sensitivity.
• Surface: Confirm the mounting surface (wood, brick, stucco, vinyl siding) and select the appropriate drill bit and anchors.

🔧 Step 2: Mark and Drill the Mounting Holes

1. Hold the mounting bracket against the wall at your chosen location.
2. Use a pencil to mark the screw hole positions through the bracket.
3. Set the bracket aside and drill pilot holes at the marked positions. Use a masonry bit for brick/concrete, a wood bit for timber/siding.
4. If drilling into masonry, insert the included wall anchors into the holes.
5. Hold the bracket back in position and drive the screws through the bracket into the wall (or anchors).
6. Check that the bracket is level before fully tightening.

💡 Step 3: Attach the Light to the Bracket

1. Slide or click the light unit onto the mounted bracket according to the included instructions.
2. Tighten any locking screws to secure the light to the bracket.
3. Adjust the light head angle: aim it toward the center of your target detection zone, slightly downward.
4. If the solar panel is integrated (not separate), angle it toward true south (in the US) at approximately 30–45° from horizontal for maximum charging efficiency.

⚙️ Step 4: Set the Operating Mode

Most solar motion sensor lights have a mode selector switch or button. Set it before or immediately after installation:

• Mode 1 (Motion-only): Light stays off until motion detected, then full brightness. Best for driveways, side yards, backyards, garages. Maximum battery efficiency.
• Mode 2 (Dim + motion boost): Low ambient light all night, full brightness on detection. Best for front doors, entryways, delivery zones.
• Mode 3 (Dusk-to-dawn): Full brightness all night. Only recommended in high-sun climates with 6+ hours daily sun.

🔋 Step 5: Initial Charge

Before relying on the light for security, allow the battery to fully charge:

• First charge: Leave the light in full sun for 6–8 hours before first use. This conditions the battery for optimal performance.
• Indicator light: Most lights have a charging indicator. Check the manual for your specific model.
• Test after charging: Cover the solar panel with your hand (simulating darkness) and walk in front of the PIR sensor to confirm motion detection is working.

📱 Step 6: Test and Adjust

1. Test detection range: Walk toward the light from the far edge of your target zone. The light should activate before you reach the midpoint of the zone.
2. Test detection angle: Walk across the detection zone from side to side. The light should activate across the full width of your target area.
3. Adjust if needed: If coverage is off, loosen the mounting bracket and rotate the light head. Re-tighten and retest.
4. Check for false triggers: Observe the light over 1–2 nights. If it triggers frequently without apparent cause, check for moving foliage, reflective surfaces, or HVAC vents in the detection zone.

📊 Mounting Height Quick Reference

• Front door / entryway: 8–10 ft, centered above door
• Driveway: 8–12 ft, garage corner or entrance post
• Side yard / gate: 7–9 ft, above gate or fence post
• Backyard: 8–10 ft, back corners of house
• Garage door: 8–10 ft, centered above door
• Shed: 7–8 ft, above shed door

⚠️ Common Installation Mistakes to Avoid

• Mounting in shade: The solar panel needs direct sun. Even partial shade significantly reduces charging efficiency.
• Too high: Above 12 ft, PIR sensitivity decreases and the detection zone narrows. Stay at 8–10 ft for most applications.
• Facing north: In the US, solar panels should face south for maximum sun exposure. East or west is acceptable; north is not.
• Aiming at heat sources: HVAC vents, dryer exhausts, and reflective windows can cause false triggers. Avoid aiming the PIR sensor at these.
• Not testing before relying on it: Always test detection range and angle after installation. Adjust before assuming it's working correctly.
